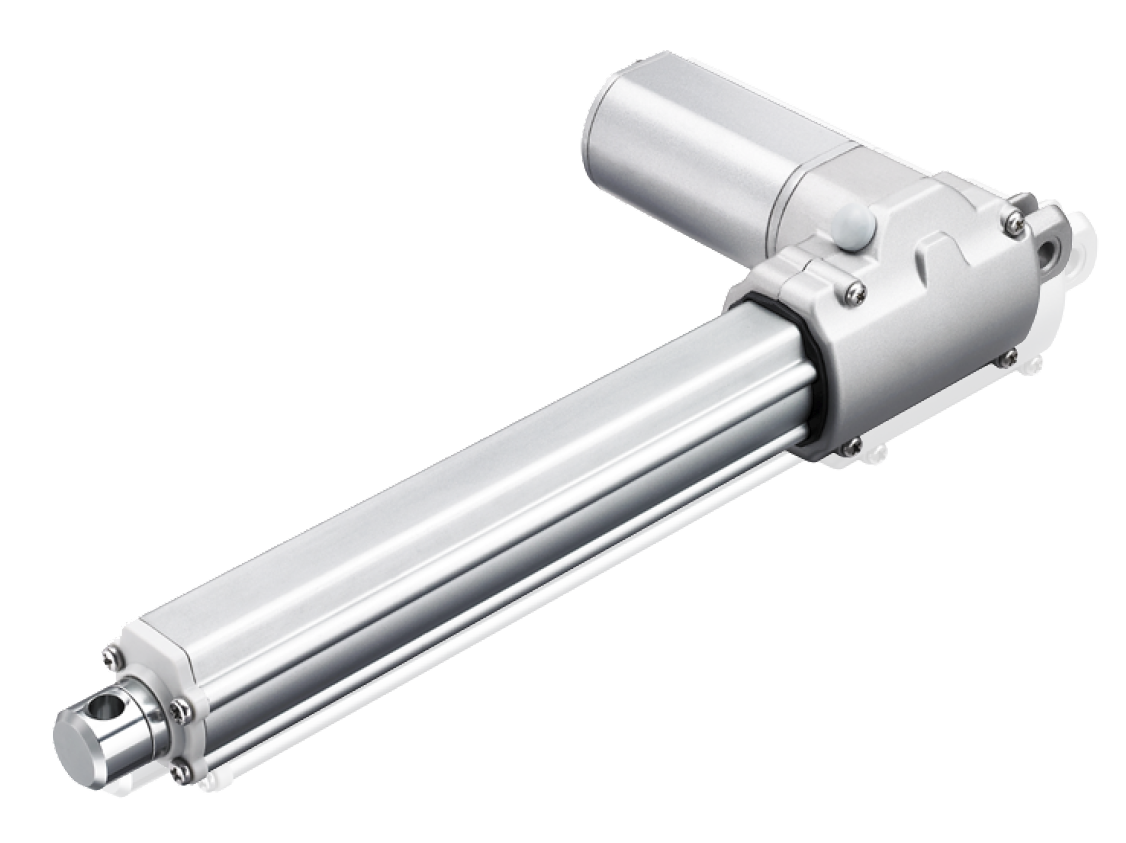

Electric actuator TA4 (DC-Motor)
The TA4 series linear actuator is compact, quiet and powerful. It is designed to fit in an area specifically requiring a right angle motor and can be equipped with a Hall sensor for feedback. Industry certifications for the TA4 linear actuator include IEC60601-1, ES60601-1 and RoHS. In addition, the TA4 is available with optional IP rating 54 or 66.
Typical areas of application
• Comfort motion
• Industrial motion
Features
• Voltage | 12 V DC or 24 V DC |
• Max. load | 3500 N in push / 2000 N in pull* |
• Max. speed at full load | 17.0 mm/s* |
• Min. installation dimension | stroke+140 mm |
• Color | silver |
• IP rating | up to IP66 |
• Standards, directives | EN60601-1 and RoHs |
• Operational temperature range | -5 °C ~ +45 °C |
• Option | Hall sensor(s) |
Silent and powerful. |
*depending on the gear ratio and the motor
Subject to technical changes and errors excepted.
