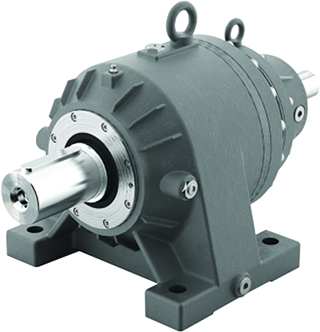

Planetary Gears - Series P

• Modular design -> Reduces part count • Standard motor connection • Interchangeable -> Can be supplied as drop-in replacements for many European manufacturers • Atex compliant -> Can be supplied against Group 2 or 3 for surface industries in designated hazardous locations, zones 1 & 2 for gases, vapors and mist, zones 21 & 22 for dust.

Planetengetriebe Serie P

The Planetary gear range takes advantage of many years of accumulated design expertise, together with the use of high quality materials and components. The end result is a high quality series of planetary gear reducers and geared motors offering a high load carrying capacity, high efficiency, quiet running and reliable drive solution.

The Planetary gear range is designed to be dimensionally interchangeable with other major manufacturers and is designed to be easily modified to suit more custom requirements.

Parallel (co-axial) drive options:
Base Mounted
Flange Mounted

Input options:
Input shaft with keyway
Motor adapter to suit fitting of IEC B5 motor
Motor adapter to suit fitting of NEMA C flange motor

Output options:
Output shaft with keyway
Hollow output shaft to suit connection with shrink disc
Output shaft with external spline

Unit sizes	01, 02, 03, 05, 08, 12, 16, 25, 40, 65
Input power	Up to 90kW (120 HP)
Output torque	Up to 65,000Nm
Ratio	3.6/1 to 2400:1
Motor sizes	IEC Frame from 63 to 180
