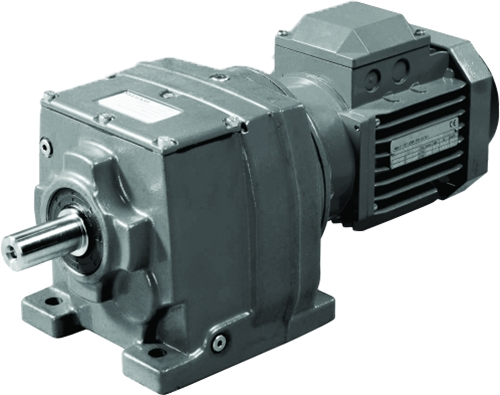

The Series M geared motor has been developed with many years of design proficiency which results in a series of speed reducing geared motors offering high load carrying capacity, high efficiency, quiet running and reliability.
Series M in line geared motors and reducers can meet a wide range of engineering demands offering a very efficient and compact drive solution offering input power up to 90Kw and a maximum output torque capacity of 11,000 Nm.
Unit Sizes: |
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 13, 14 |
Input Power: |
Up to 90kW (121HP) |
Output Torque: |
Up to 11,000Nm (97,350 lb.in) |
Gear Ratios: |
1.4 to 70:1 double reduction, up to 250:1 triple reduction 16,200:1 in combined units |
Motor Sizes: |
IEC Frames from 63 to 280; NEMA Frames from 56 to 405 |
|
