INVEOR M

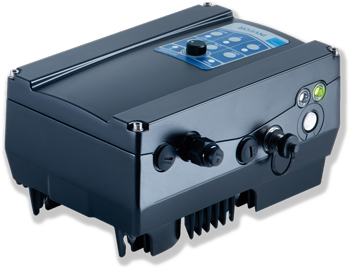

The motor-mounted INVEOR M product family comes in five sizes and covers the power range between 0.25kW and 22kW in 1- and 3-phase variants, motor-mounted or wall-mounted. You select the size to suit your motor rating in the configuration.
Being installed directly on the motor minimises wiring and installation work and therefore also project planning and installation costs for systems covering large areas. The application section can be extended with ease as no additional space is needed for control cabinets. The individual units can be fully pre-wired, pre-tested and standardised. This makes project planning and commissioning faster than with comparable projects where several drive controllers are fitted in the control cabinet. Shielded motor cables are very short if they are needed at all.
Input/output configuration
The number of inputs/outputs and the model with and without functional safety (STO) can be configured through the choice of integrated application unit.
|
