Linear actuator TA2 (DC-motor)
The TA2 linear actuator is compact, robust and completely sealed. This linear drive is perfectly suited for use in confined spaces where power and performance should not be neglected. Options include positioning sensors, limit switches to transmit the signal and a 90-degree bracket. The certifications of the TA2 include EN60601-1, EMC and RoHS directives.
Features
• low noise
• gears made of sintered metal
• high corrosion resistance
• aluminum extension tube
• zinc alloy housing
• compact
• solid and efficient
• life time lubrication
Voltage: 12 V DC, 24 V DC
Load max., dynamic: 1000 N*
Load max., static: 2300 N
Lifting speed max. at full load: 51 mm/s*
Stroke: 20~1000 mm
Standard stroke: 50, 100, 150, 200, 250, 300 mm
Minimum installation dimension: stroke + 105 mm
Gear ratios: 5:1 10:1 20:1 30:1 40:1
Rod end bore: Ø 6,4 mm (option Ø 8 mm)
Duty cycle: 25 %
Ambient temperature: -25° C - + 65° C
Limit switches: integrated (adjustable by the supplier)
Potentiometer (option): 10 k, 10-turn
Hall sensor (option): 1 K or 2 K
Protection class: IP52 (option IP66)
Standards, directives: EN60601-1, EMC and RoHS
*depending on the gear ratio and the motor
Subject to technical changes and errors excepted.

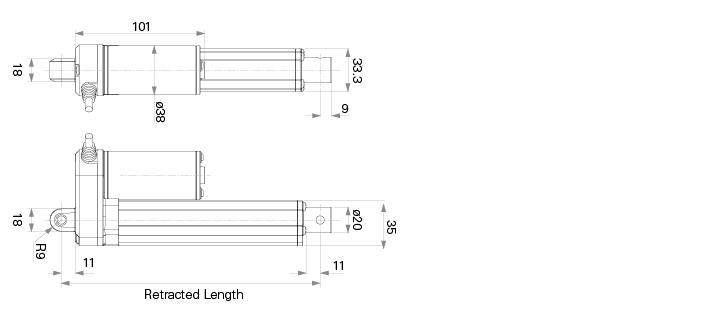

Dimensions without output signals (mm)

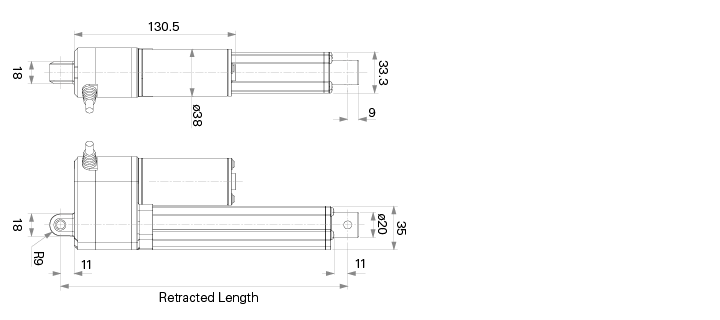

Dimensions with output signals (mm)
| File | Description | Version | File size | Created |
|---|---|---|---|---|
 TA2(50-300).zip | 3D model (step) | V1.0 | 2575 kB | 2013-09-04 15:29 |
 Data sheet / Manual | TA2 | en-201805 | 1614 kB | 2018-05-02 14:13 |
