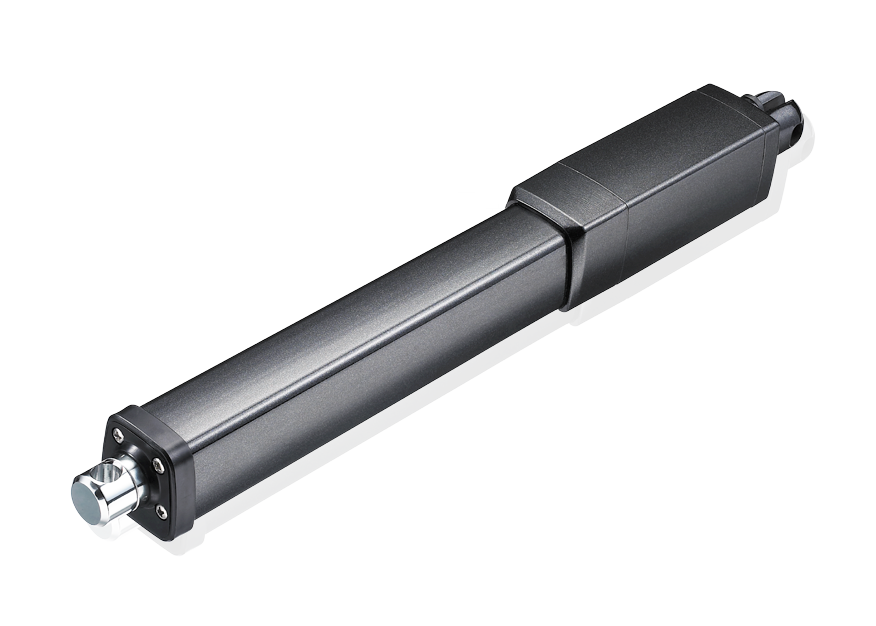

Electric actuator JP4 (DC-motor)
The JP4 series inline linear actuator is most similar to the JP3, but was designed for industrial applications that require higher load and speed. Its IP69K protection
ensures it will withstand high temperature, high pressure water jets, and the ingress of dust and other solid contaminants. For synchronization and position feedback, the JP4 can be equipped with Hall sensors.
Typical areas of application
• Industrial motion
• Building automation systems
Features
| • Voltage of motor | 12 V DC or 24 V DC |
| • Max. load | 4500 N in push / 3000 N in pull* |
| • Max. speed at full load | 24.0 mm/s* |
| • Standard stroke | 20 ~ 500 mm |
| • Min. installation dimension | stroke+289 mm |
| • IP rating | up to IP69K |
| • Color | black or grey |
| • Operational temperature range | -5 °C ~ +65 °C |
| • Operational temperature range at full performance | +5 °C ~ +45 °C |
| • Storage temperature range | -40 °C ~ +70 °C |
|
An inline actuator specially designed for small spaces. |
*depending on the gear ratio
Subject to technical changes and errors excepted.
| File | Description | Version | File size | Created |
|---|---|---|---|---|
 Data sheet / Installation instruction | JP4 | en-201802 | 1171 kB | 2018-02-14 14:28 |
